Chine Manufacture of High Accuracy Silicone Injection Molding Machine for Making Quality Silicone Menstrual Cup

Product Categories
Guangzhou Juchuan Machinery Co., Ltd.
Contact Now

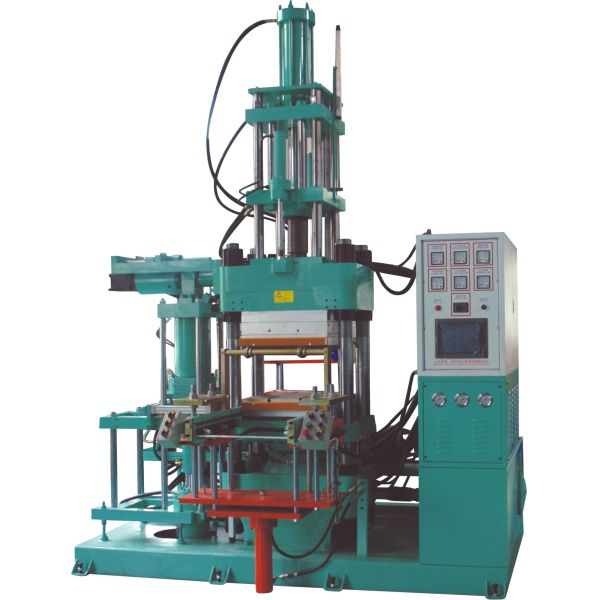

Chine Manufacture of High Accuracy Silicone Injection Molding Machine for Making Quality Silicone Menstrual Cup

Place of Origin : Guangdong, China

Model Number : VI-AO

Brand Name : JuChuan

Certification : CE ISO9001

Packaging Details : shrink film packing

Supply Ability : 100 Unit/Units per Month

Price : $20,000.00 - $46,800.00/sets

Condition : New

Style : VERTICAL

Clamping Force : 50~1000Ton

Type : Injection molding machine

Plastic Type : Thermoplastic

Automatic : Yes

After-sales Service Provided : Engineers available to service machinery overseas

Injection Weight : 500~10000cc

Injection Rate : Adjustable

Opening Stroke : 280-1500 Mm

Power : 16.90~64.5Kw

Clamp Force(Ton) : 50~1000

Injection Volume(cc) : 500~10000

Injection Pressure(kgf/xm2) : 1800

Platen Size(mm) : 300*300~1200*1200

Plunge Stroke(mm) : 300~500

Heater Capacity(kw) : 8.4~42

Gross Weight(Ton) : 5.5~21

Port : Guangzhou

clamp force : 50-1000

injection volume : 500-4000

injection pressure : 1800

plunger stroke : 300-500

opening mold : 2RT3RT4RT

Gross weight : 5.5-10ton

Contact Now

Silicone Menstrual Cup Moulding Injection Machine Price

Chine Manufacture of High Accuracy Silicone Injection Molding Machine for Making Quality Silicone Menstrual Cup

New Arrival "all-in-all-out" Injection Molding Technology:

  1. Visible Feeding System:
  2. Excellent Plasticizing Effects:
  3. High Temperature Ranges:
  4. Save Raw Rubber Material:

Machine Technical Charateristics:

- Suitable for automotive and electronic rubber parts, high/cold temperature precision rubber parts, with a focus on NBR products.


- All-in-out structure allows sprueless injection, minimizing material loss, and provides precise control over injecting material temperature.


- Excellent for high precision molding parts.


- Achieves 5-10 times better accuracy compared to conventional injection machines, with a measuring precision of ±0.1g for a 1000cc injection volume.


- Patented Anti-collision Molding System prevents mold damage caused by misalignment.


- Servo-controlled system enables up to 40% energy savings during operation.


- Features a proportional backpressure controlling characteristic for optimal molding conditions.

Technical parameter

Technical Parameters:

Model Unit 200VI-AO 300VI-AO 400VI-AO 600VI-AO
Clamping Force Ton 200 300 400 600
Injection Capacity cc 2000 3000 4000 6000
Injection pressure kgf/cm² 1800 1800 1800 1800
Operation table size mm 550*560 700*700 700*700 850*850
Min. Mold Thickness mm 100 100 100 100
Plunger stroke mm 400 400 400 500
Distance of Thermo-plate mm 500~600 500~600 500~600 600~700
Distance of Tie bar mm 640*310 820*395 820*395 970*500
Die sinking type 2RT/ 3RT/ 4RT-Upper Ejector-Bottom Ejector
Max. Operating Pressure Mpa 20 20 20 20
Motor Power hp 15 15 15 20
Electric Heating Power Kw 15.3 24 24 29.75
Total Power Kw 30.3 39 39 48.75
Gross weight Ton 7.5 9 10 14.2
Dimension mm L2600*W2000*H4000 L2750*W2265*H4200 L2750*W2265*H4200 L3200*W2500*H4350

Mahcine Applications :

  • The "all-in-out" series silicone rubber injection molding machine is an advanced and compact rubber molding machine with wide applicability, high efficiency, and high precision. It is particularly well-suited for molding rubber products with complex shapes, challenging exhaust requirements, and high precision injection molding needs.

    This versatile machine can handle multilateral, polygonal, and other intricate product shapes, with a special focus on NBR products and O-ring products. It is ideal for various high precision applications, including cooking utensils, sporting goods, medical supplies, auto accessories, high and low voltage electricity, electronic accessories, and more.

Our Services

Our Services Conception:

  • Cost efficient recommendations and high quality products with continuous improvement is key to our service for customer.

  • we are committed to providing full after-market service to all of our customers by online instructions or video reference.

  • Installation and debugging: Our engineers will teach you about the installation and debugging for free when the machine are finished.

  • After-sales service: We will supply the free repairment on this machine for one year. ( the service is only for natural damage)

Product Features

Chine Manufacture of High Accuracy Silicone Injection Molding Machine for Making Quality Silicone Menstrual CupChine Manufacture of High Accuracy Silicone Injection Molding Machine for Making Quality Silicone Menstrual Cup

Related Products

Chine Manufacture of High Accuracy Silicone Injection Molding Machine for Making Quality Silicone Menstrual Cup

Chine Manufacture of High Accuracy Silicone Injection Molding Machine for Making Quality Silicone Menstrual Cup Chine Manufacture of High Accuracy Silicone Injection Molding Machine for Making Quality Silicone Menstrual Cup Chine Manufacture of High Accuracy Silicone Injection Molding Machine for Making Quality Silicone Menstrual Cup
Packaging & Shipping

Shipping and packing

Chine Manufacture of High Accuracy Silicone Injection Molding Machine for Making Quality Silicone Menstrual Cup

Company Information

Company information

Guangzhou JuChuan Machinery Co.,Ltd was established in 1997. We are mainly specializing in producing silicone/rubber injection molding machines, Vacuum compression molding machines, plate vulcanizing machine, “all-in-out” ,liquid silicone injection machine, ”first in first out” ,”first in last out”, vertical and horizontal silicone/rubber injection machine for 20 years.

We have a special company patent: Anti-collision Molding System prevent mold damage occurring form misalignment.

Chine Manufacture of High Accuracy Silicone Injection Molding Machine for Making Quality Silicone Menstrual Cup

Chine Manufacture of High Accuracy Silicone Injection Molding Machine for Making Quality Silicone Menstrual Cup

Thailand exhibition show:

Chine Manufacture of High Accuracy Silicone Injection Molding Machine for Making Quality Silicone Menstrual Cup
